Effective pallet wrapping may appear straightforward—spin, stretch, cut—but it can be the difference between a heavy load and an expensive goods return. Margin is reduced by damaged items, collapsing pallets, and unnecessary wrap use. This is a useful, step-by-step guide that combines the latest technological advancements with tried-and-true shop-floor techniques to ensure that you consistently provide flawless pallets.

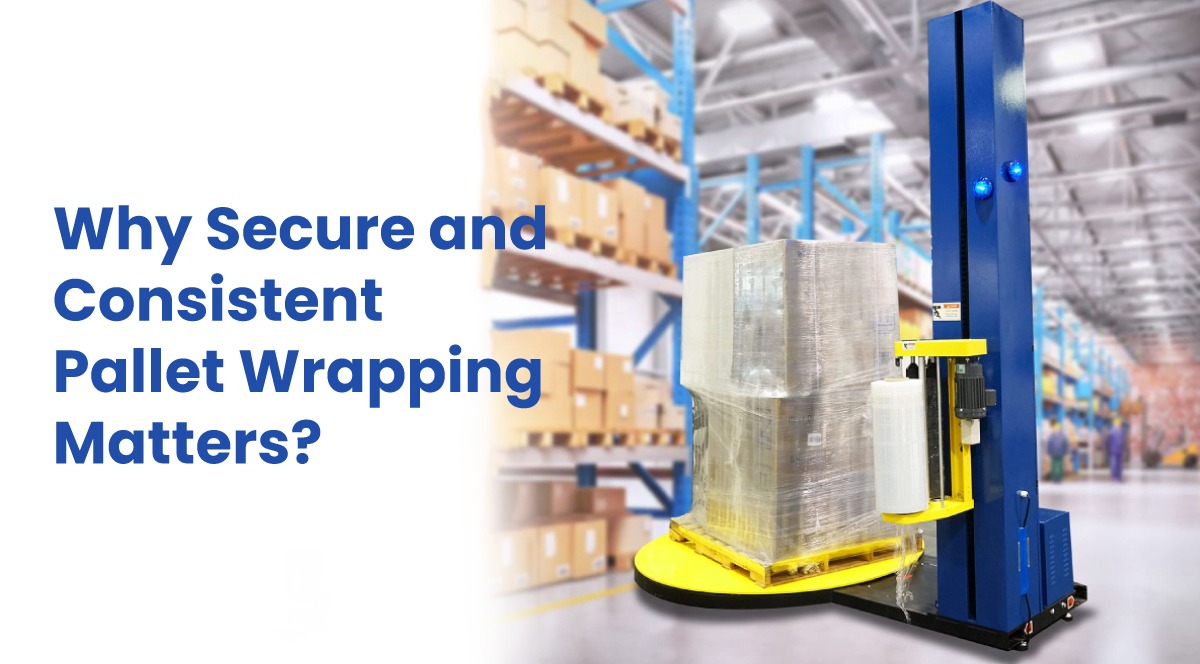

Why Secure and Consistent Pallet Wrapping Matters

  • Load integrity: A pallet that is appropriately covered can withstand tilt pressures, corner hits, and vibrations during transportation.
  • Cost control: Less money is spent on packaging and logistics due to optimized film utilization and fewer rejected shipments.
  • Brand protection: Customers are satisfied and your reputation is preserved when you arrive without any damage.
  • Safety & compliance:  In addition to lowering workplace accidents, stable loads aid in meeting regional and ISO transportation regulations.

1. Start with the Right Stretch Film

  1. Match film grade to load weight. While 20-30 µm films (or reinforced films) are appropriate for beverages, bricks, or metal components, thin 12-15 µm films are suitable for lightweight FMCG.
  2. Consider pre‑stretched film. Pre-stretched rolls reduce operator fatigue, reduce film usage by up to 50%, and require less force to reach holding tension.
  3. Inspect storage. Because suppleness is ruined by high temperatures, store rolls upright in a hygienic warehouse between 15 and 25 degrees Celsius.

2. Optimise Pre‑Stretch and Tension

  • Set machine pre‑stretch to 200–250 %.  High holding power without ripping is the sweet spot for the majority of loads.
  • Check tension on every shift. Too loose allows loads to "dish" outward, while too tight smashes cartons.
  • Use a grams‑per‑centimetre test. Wrap tension is kept within specification with the use of a portable force gauge.

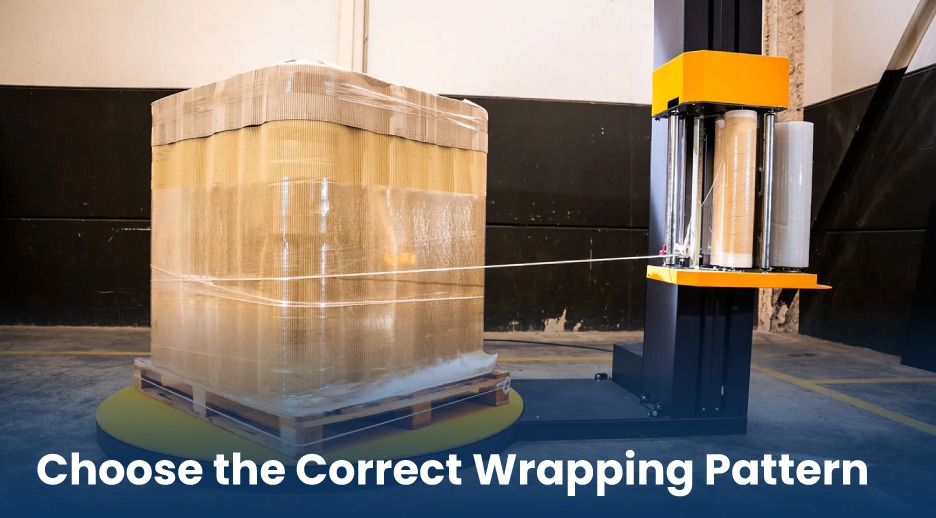

3. Choose the Correct Wrapping Pattern

Load Type

Recommended Pattern

Why It Works

Uniform cartons

Standard spiral with 50 % overlap

Balanced containment and speed

Mixed heights

Rope‑cable at middle & top

Prevents “cathedral” gaps

Drums/barrels

Cross‑wrap + vertical band

Locks bases, resists rolling

Bagged product

Double spiral + top sheet

Stops product slippage

Tip: Always secure at least three turns at the pallet base and finish with a film cable or welded tail to stop unraveling.

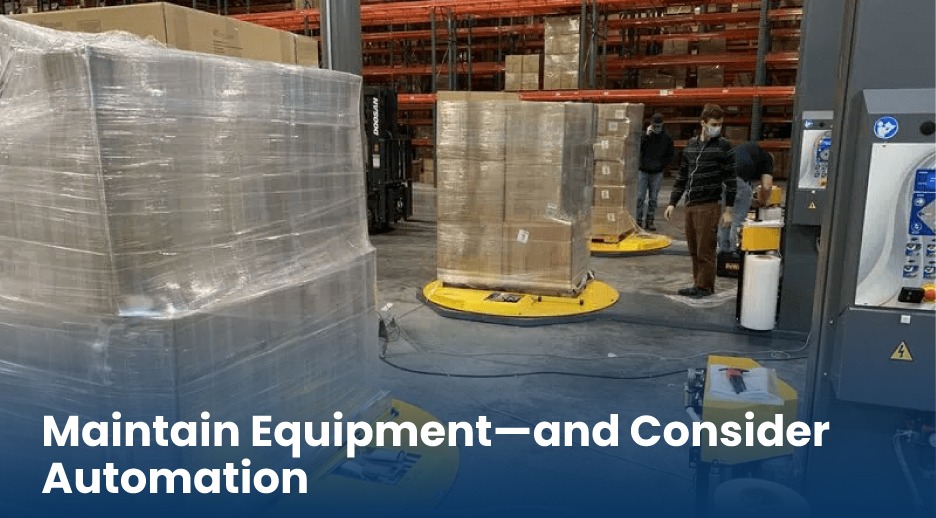

4. Maintain Equipment—and Consider Automation

Manual wrapping works well for less than 20 pallets each day, but when weariness sets in, consistency suffers. Automated turntables or robotic arms provide consistent film consumption, pattern, and tension:

  • Automatic turntable & rotary arm wrappers: Up to 40 pallets per hour is ideal for normal loads.
  • Mobile “robot” wrappers: Navigate around heavy or immobile objects. Good for plants that are little.
  • Orbital or ring wrappers: High volume beverage or tissue plants require extremely fast speeds.

Regular maintenance matters too: clean photo‑eyes, lubricate chains weekly, and replace worn tension rollers every six months.

5. Integrate Smart Technology and IoT

Modern wrappers can self‑diagnose and self‑adjust:

  • Load‑sensing sensors automatically adjust tension and wrap pattern based on profile and weight readings.
  • IoT connectivity provides real-time KPIs to your MES or WMS for fast OEE dashboards, such as motor temperatures, cycle counts, and film utilized per pallet.
  • AI & machine‑learning layers  Examine past wrap data and suggest film gauges or cycle adjustments that save waste and improve stability.

These data‑driven tools slash downtime via predictive maintenance alerts and ensure every pallet leaves the dock with documented consistency.

6. Keep Sustainability Front and Centre

Customers and regulators now track plastic consumption. You can stay ahead by:

  • Switching to recycled‑content or bio‑based films.
  • Utilizing pre-stretch or “nano‑layer” films that maintain holding force with reduced plastic usage.
  • Adding corner-board or slip-sheet reinforcements allows for lower wrap counts without stability loss.
  • Implementing film‑end collection bins at docks for recycling partnerships.

7. Train, Audit, Repeat

Even the best equipment fails if operators override settings:

  1. Launch quarterly training on film threading, tension checks, and safe clearing of film breaks.
  2. Post one‑page SOPs with photos at every wrapper.
  3. Run random retention tests: tighten a chain‑hand scale under manually pulled film; 500–700 g pull is typical.
  4. Set KPI boards (film grams/pallet, defects/pallet, quarterly damage claims) visible to teams.

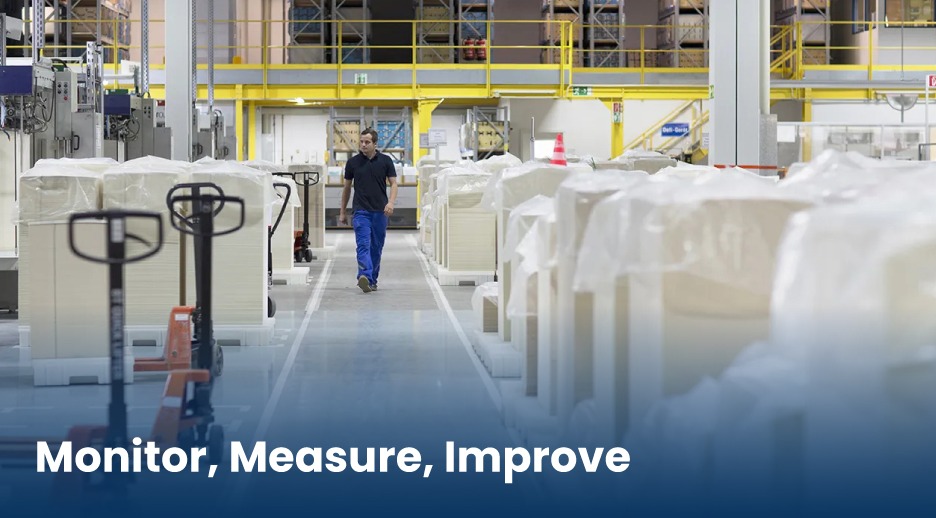

8. Monitor, Measure, Improve

  • Tilt‑test samples at a 22 ° angle; any shifting indicates insufficient containment.

  • Vibration tables (ISTA 3E) simulate truck routes; adjust wrap pattern if loads migrate >13 mm.

  • Film usage dashboards reveal spikes pointing to operator overrides or component wear.

  • Continuous improvement loops: Use IoT alerts and damage feedback to refine settings monthly.

Conclusion

Pallet wrapping that is safe and reliable requires a combination of science and discipline: choose the appropriate film, manage tension, automate where you can, use smart technology, and conduct constant audits. Double-digit declines in damage claims and plastic usage are being reported by businesses implementing AI-driven wrapping, IoT monitoring, and eco-friendly films—evidence that ideal pallets benefit the environment and the bottom line. Start small with better film selection and tension checks, then work your way up to complete automation and data analytics for a wrap strategy that will last.
